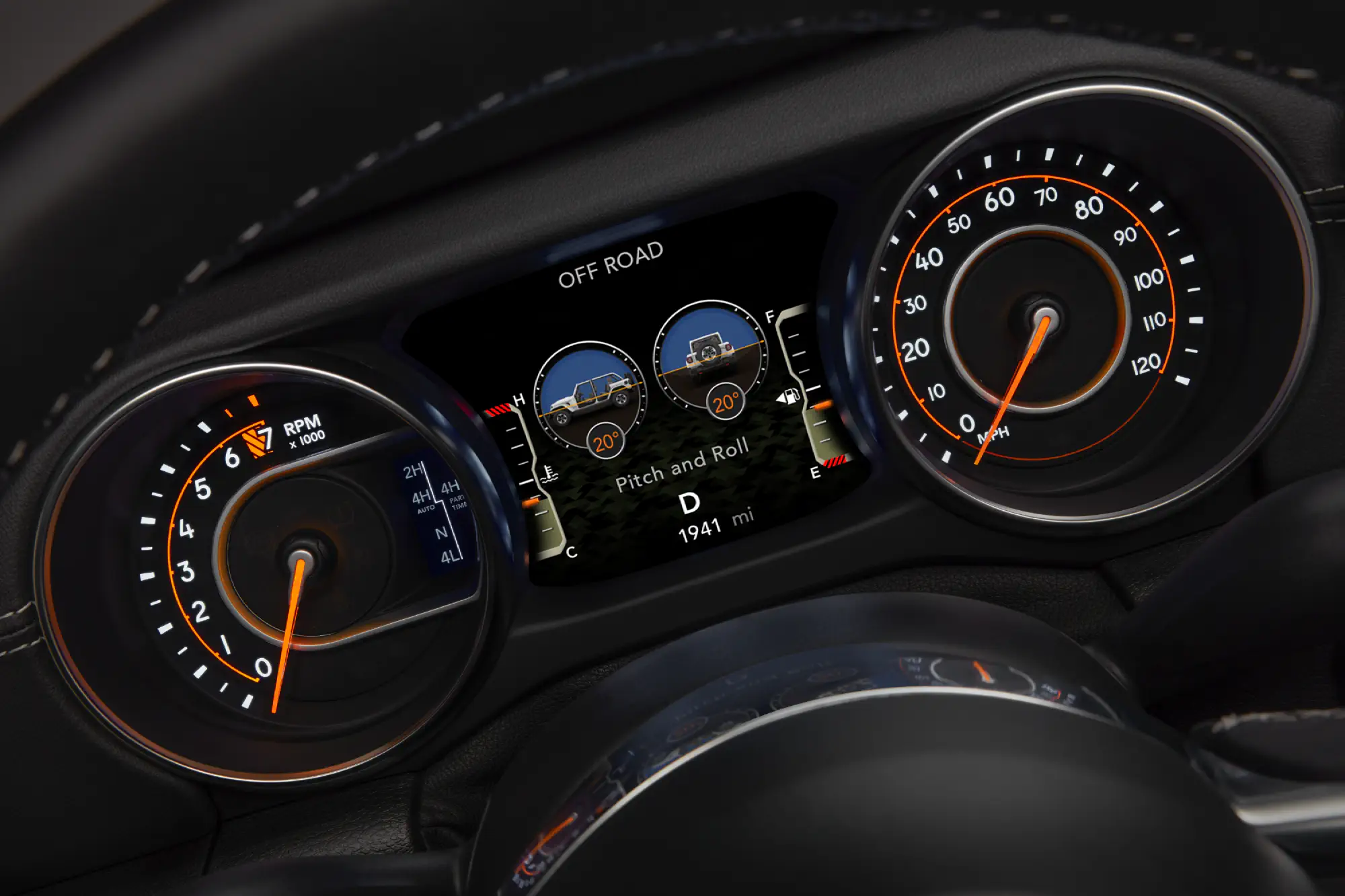

Wrangler Electrical and Instrument Cluster Reliability Overview
These issues primarily affect Wrangler Sahara, Rubicon, and 4XE trims, often appearing within the first 20,000 miles.
Some problems trace back to Body Control Module (BCM) or cluster communication errors, while others involve moisture intrusion or software instability in the Uconnect interface. Identifying the source quickly can help prevent costly electrical repairs and ensure all dashboard systems function as intended.
Common Jeep Wrangler Dash and Electrical Symptoms
Owners and technicians frequently report these concerns:
- Instrument cluster lights flicker or fail intermittently
- Random warning lights (ABS, Airbag, ESC) appear without faults
- Dash screen goes black or reboots mid-drive
- Radio or Uconnect screen reboots when using climate controls
- Trailer or battery warning lights triggered by voltage fluctuations
Issues often appear after rain exposure, cold starts, or following battery replacement, suggesting electrical grounding or voltage management issues.
Technical Causes Behind Wrangler Electrical Faults
Dealer and engineering reports identify several recurring root causes:
- Faulty Body Control Module (BCM) software calibration
- Ground strap corrosion under battery or frame connection
- Cluster module internal short or solder joint failure
- Low 12V battery voltage or alternator charging irregularities
- Moisture ingress behind the instrument cluster or fuse box
Relevant Recalls and TSBs:
- TSB 08-017-22: BCM software update to correct false dash warnings
- TSB 08-023-23: Cluster software reflash to fix intermittent blackouts
- Recall 23V-601: Addresses electrical connector corrosion causing loss of cluster display
Owner Experiences and Forum Feedback
Owners on WranglerForum and Reddit (r/Jeep) describe frustrating repeat issues:
“My dash went completely dark while driving. Dealer reflashed the BCM—fine for a month, then it happened again.”
“Random lights for ABS and Airbag kept popping up. They found a ground fault behind the fuse panel.”
“Uconnect froze every time I turned on the defroster. Dealer replaced the cluster under warranty.”
Most issues resolve after a software reflash or ground cleaning, but some require full cluster replacements.
Repair Costs and Warranty Coverage for Wrangler Electrical Problems
| Component / Issue | Independent Shop Estimate | Dealer Estimate | Warranty Coverage |
|---|---|---|---|
| Instrument cluster replacement | $700–$1,200 | $1,000–$1,600 | Yes, under 3yr/36k basic |
| Body Control Module (BCM) reflash | $150–$300 | $200–$400 | Yes, under basic warranty |
| Ground strap replacement | $100–$200 | $150–$300 | Maintenance item |
| Fuse box moisture cleanup | $100–$250 | $200–$400 | Possibly, depending on cause |
Preventive Maintenance Tips for Jeep Electrical Systems
- Inspect and clean battery terminals every 6 months
- Avoid high-pressure washing near the fuse box or firewall
- Ensure the 12V battery remains above 12.5V charge
- Request Uconnect and BCM software updates at each service
- Park indoors or use weather protection during heavy rain
Early diagnosis prevents cluster failures from spreading to other modules.
How Serious Are Wrangler Instrument Cluster Issues?
Most electrical faults are not immediately dangerous but can cause confusion or distraction. A failing cluster may also prevent accurate display of engine temperature, charging voltage, or safety system alerts.
Severity: Moderate
Repair urgency: Moderate
Safety impact: Moderate, depending on display loss or voltage irregularities
Owners experiencing total dash blackouts should have their Wrangler inspected promptly to rule out deeper wiring or BCM faults.
Protect Your Wrangler with Mopar FlexCare
As factory warranty coverage ends, Mopar FlexCare protection can shield you from high electrical repair costs.
Mopar FlexCare coverage benefits include:
- Factory-backed service with Jeep-certified technicians and OEM parts
- Budget-friendly protection against rising electrical and infotainment repair costs
- Nationwide coverage accepted at Jeep and Ram dealerships
Frequently Asked Questions
Why is my Wrangler instrument cluster not working?
Common causes include BCM software faults, ground corrosion, or low system voltage.
Why do random dash lights come on?
Moisture or voltage irregularities can trigger false ABS, Airbag, or ESC lights.
Can a software update fix Jeep Wrangler electrical issues?
Yes. Many owners report success after a BCM or cluster reflash at the dealership.
How much does a cluster replacement cost?
Expect $1,000–$1,600 at a dealership, depending on labor and calibration.
